MC14049UBDTR2G
Manufacturer:
On Semiconductor
Mfr.Part #:
MC14049UBDTR2G
Datasheet:
Description:

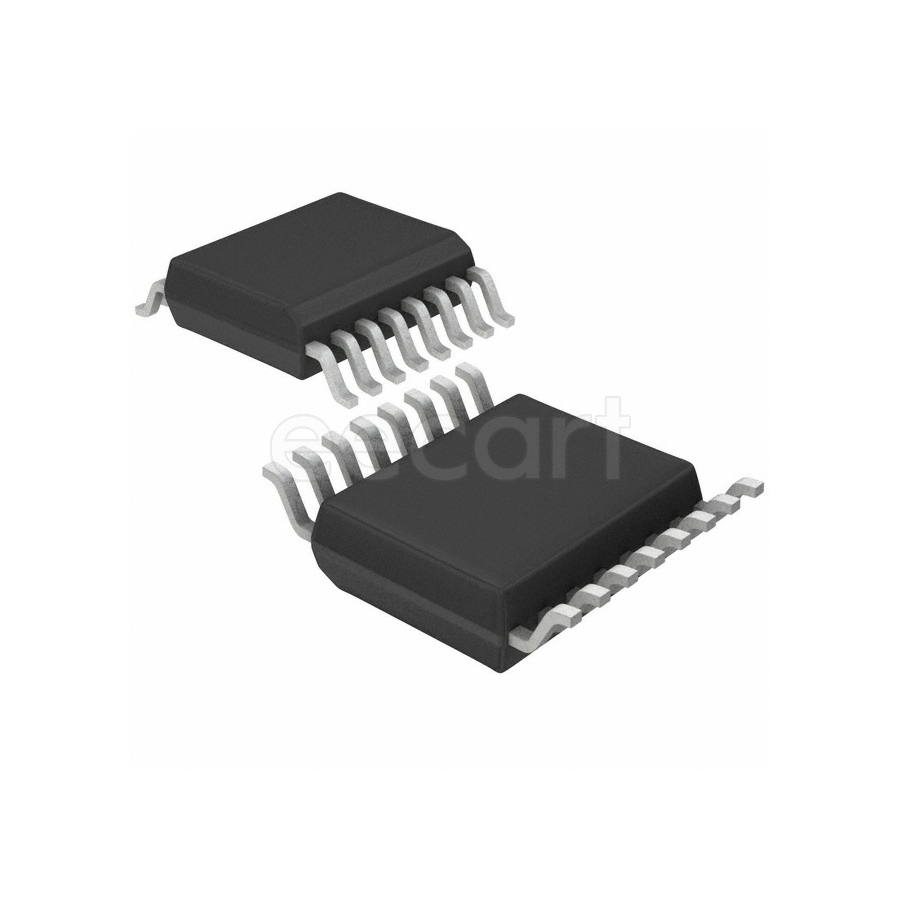

Buffers, Drivers, Resceivers and Transceivers TSSOP-16 SMD/SMT CMOS
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 16 |
| Halogen Free | Halogen Free |
| Contact Plating | Gold |
| Number of Elements | 6 |
| Number of Circuits | 6 |
| Max Supply Voltage | 18 V |
| Min Supply Voltage | 3 V |
| Number of Channels | 6 |
| Turn-On Delay Time | 120 ns |
| Quiescent Current | 4 µA |
| Propagation Delay | 50 ns |
| High Level Output Current | -4.7 mA |
| Low Level Output Current | 30 mA |
| Logic Function | Buffer, Inverter |
| Number of Inputs | 1 |
| Number of Outputs | 6 |
| Number of Gates | 6 |
| Number of Input Lines | 6 |
| Number of Output Lines | 6 |
| Schedule B | 8542390000 |
| RoHS | Compliant |
| Polarity | Inverting |
| Packaging | Reel |
| Output Type | CMOS |
Stock: 3079
Distributors
pcbx
pcbxUnit Price$0.38216
Ext.Price$0.38216
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38216 | $0.38216 |
| 10 | $0.26930 | $2.69300 |
| 25 | $0.24194 | $6.04850 |
| 50 | $0.22603 | $11.30150 |
| 100 | $0.21117 | $21.11700 |
| 300 | $0.20131 | $60.39300 |
| 500 | $0.19191 | $95.95500 |
| 1000 | $0.18296 | $182.96000 |
| 3000 | $0.17077 | $512.31000 |
| 5000 | $0.15939 | $796.95000 |
| 10000 | $0.14876 | $1487.60000 |
